Technical spesifications
Power supply: 110 – 240V ~ 50 – 60Hz
Power consumption: to 0,8W
Operational temperature: 0 – 35°C

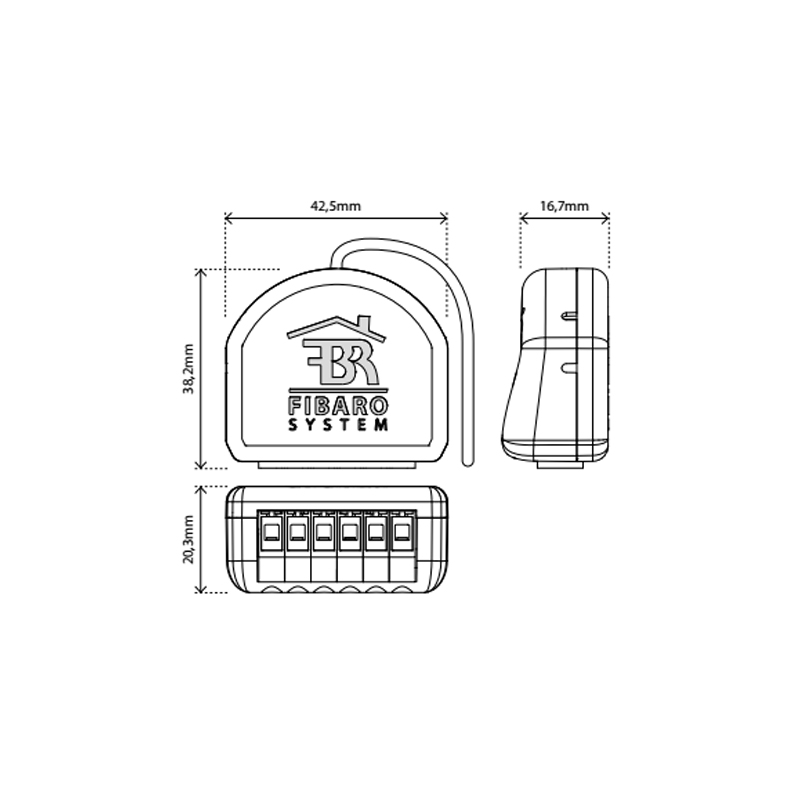

Dimensions (L x W x H): 42,50 x 38,25 x 20,30 mm
For installation in boxes: Ø ≥ 50mm
Rated load current: 8A
Overcurrent protection: required external 10A circuit breaker
Active element: micro-gap relay switch μ
Device control: remotely – radio waves directly – push buttons
Radio protocol: Z-Wave Plus
Radio signal power: 1mW
Radio Frequency: 868,4 MHz EU;
Range: up to 50 m outdoors up to 30 m indoors (depending on building materials)
Comply with EU directives: RoHS 2011/65/EU, LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC
When connecting the Switch 2 act in accordance with the following rules:
- Do not connect loads greater than those recommended!
- Do not connect types of load other than resistive!
